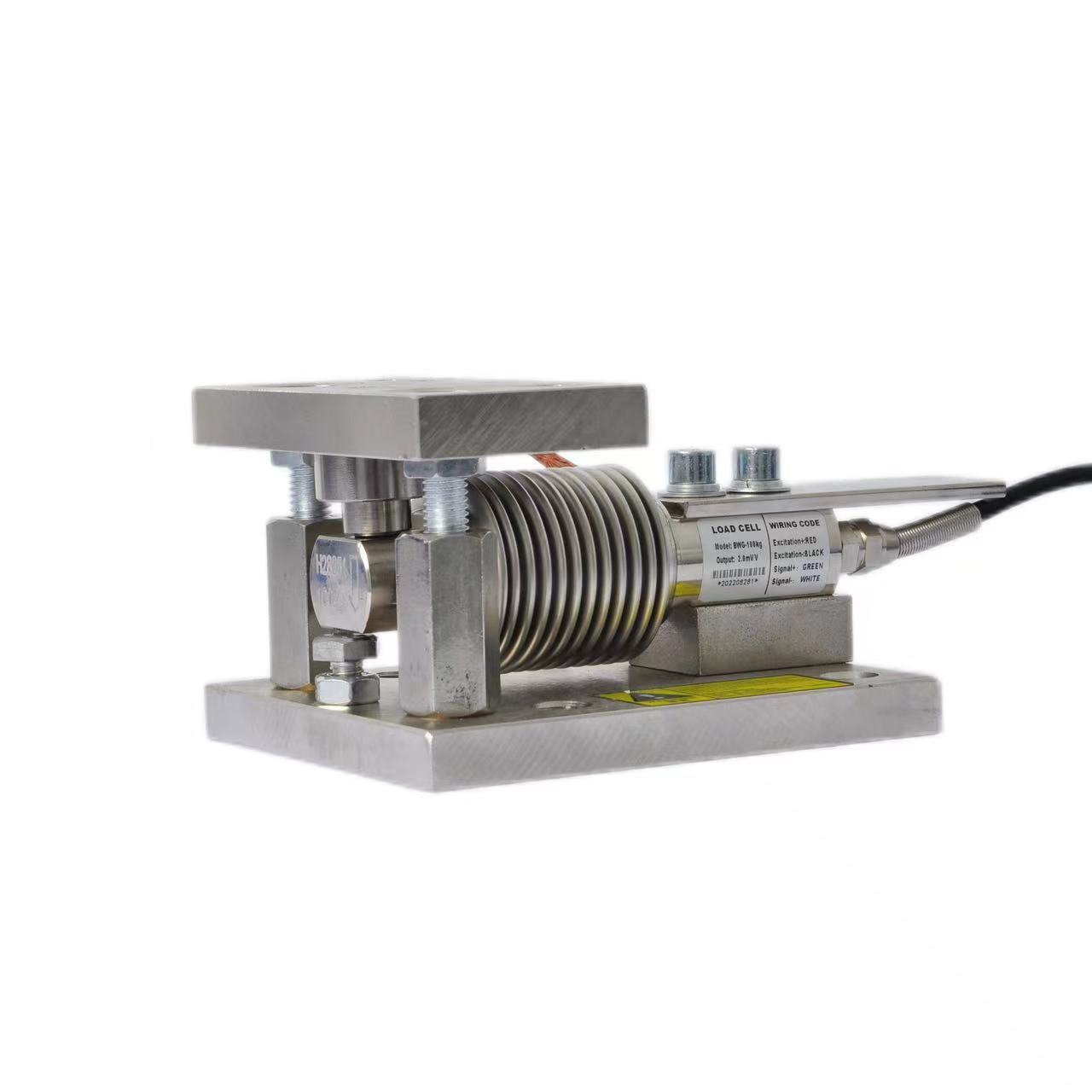

High Stability Weighing Module Anti Interference Tank Weighing Compression Weigh Modules

  • 1
  • 2
  • 3

Operating Temperature : -40℃～+80℃

Packaging Details : carton packaging

Protection Level : IP68

Product : Weighing Module

Payment Terms : Payment before delivery

Delivery Time : 20 days

Anti Eccentric Load Capacity : ≤ 150% rated load

Brand Name : Linmindu

Model Number : LMD-BWGN

Place of Origin : China

Supply Ability : 1,000 units per month

Range : 0.5t～30t

Material : Alloy steel/stainless steel

Contact Now

LMD-BWGN high stability weighing module features excellent anti-interference, ideal for silo and tank weighing as well as automatic industrial batching systems.

The LMD-BWGN Bellows Static Load Weighing Module boasts a compact and streamlined structure that eliminates the need for additional accessory installation. It offers two operating modes and is equipped with overload resistance, fatigue resistance, and eccentric load resistance capabilities, while also being able to bear both tension and compression forces. The sensor pressure head with an automatic centering function ensures precise measurement, excellent repeatability, and quick, straightforward installation, reducing the time required for installation and maintenance. Additionally, the weighing module is designed with a horizontal limit and lifting structure, allowing for fast and convenient installation, maintenance, and replacement of sensors.

Product Features

  • The sensor is welded and sealed with stainless steel/alloy steel material, with a protection level of IP68, and can be used in various harsh environments
  • Spherical connector, always maintaining the vertical weighing state of the module
  • Support bolts to prevent equipment from overturning
  • Easy and fast installation
  • Easy maintenance, saving downtime for maintenance
  • Suitable for ingredient weighing control of small and medium-sized weighing reactors in industries such as chemical, pharmaceutical, and food
  • Explosion proof mark: EX IA IIC T4-T6 GA, EX IA D20 T85-T135

Specifications

Project

Parameters

Material

Alloy steel/stainless steel

Range

0.5t～30t

Precision

OIML C3/0.02%FS

Protection Level

IP68

Output

2.0±0.1mV/V

Operating Temperature

-40℃～+80℃

Installation Method

Shear bolt fixation, modular installation

Safe Load

150% FS (limit)

Anti Eccentric Load Capacity

≤ 150% Rated load

High Stability Weighing Module Anti Interference Tank Weighing Compression Weigh Modules
